F-DGSi Generators

LN2 Generators Gas Generators

F-DGSi LN2 Generators

  • LN2 Generators

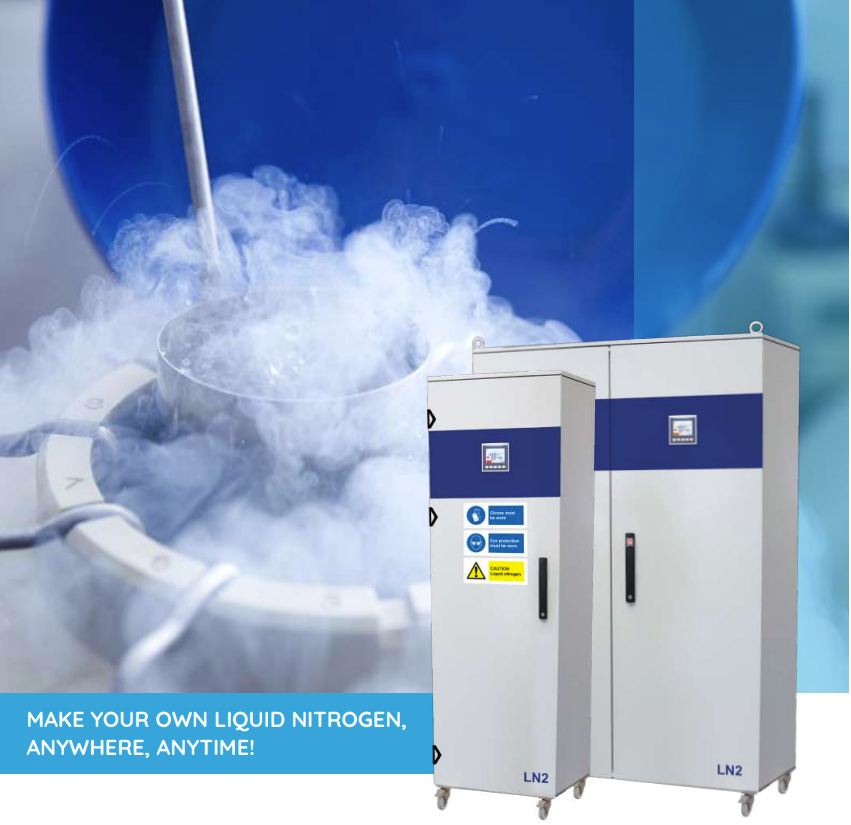

    The F-DGSi CRYOGEN Series offers a full range of on-site liquid nitrogen generators, from compact lab models to high-capacity industrial systems. Producing 8 to 960 liters per day with >99% purity, the series includes air-cooled units like the CRYOGEN.FLASK.08–80 RA for laboratories and medical use, and water-cooled systems such as the CRYOGEN.130–960 for large-scale cryogenic applications. Each generator integrates PSA nitrogen generation and Gifford-McMahon cryo-refrigeration with a built-in dewar, touchscreen control, remote monitoring, and O₂ safety alarms. Designed for reliability, efficiency, and sustainability, the CRYOGEN line provides plug-and-play LN₂ production anywhere, anytime—eliminating the cost and risk of traditional deliveries.

    Click Here For Full Catalogue

  • CRYOGEN 8–80 L/Day (Air-Cooled Models)

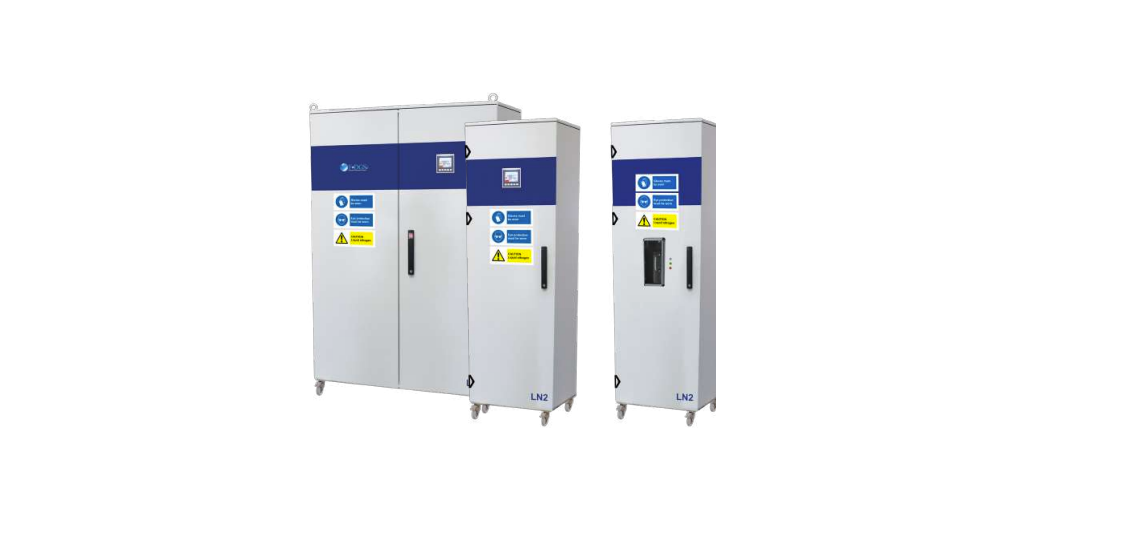

    The F-DGSi CRYOGEN 8–80 L/Day Series delivers compact, air-cooled liquid nitrogen generators designed for laboratories, clinics, and small research facilities. Producing 8 to 80 liters per day of 99% pure LN₂, these plug-and-play systems include integrated 60–210 L dewars, PSA nitrogen generation, and Gifford-McMahon cryo-refrigeration for on-demand liquefaction. Controlled through a color touchscreen with USB and Ethernet connectivity, operators can start, monitor, and schedule maintenance easily. Built-in O₂ safety alarms, automatic eco-mode, and emergency stop ensure safe, efficient operation. Available in compact one- or two-door cabinets (80–180 × 196 × 80 cm, 320–600 kg), these low-noise units (52–65 dBA) consume between 1.3 and 6.9 kW. Designed for simplicity, safety, and low maintenance, the CRYOGEN air-cooled models provide a cost-effective, sustainable solution for producing liquid nitrogen directly on-site.

  • CRYOGEN 20–960 L/Day (Water-Cooled Models)

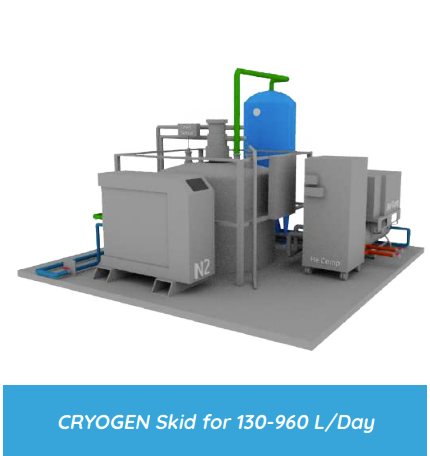

    The F-DGSi CRYOGEN 20–960 L/Day Series offers high-capacity, water-cooled LN₂ generators for industrial, medical, and research environments requiring continuous cryogenic production. Capable of generating 20 to 960 liters per day of high-purity liquid nitrogen, each system integrates a Helium compressor, PSA nitrogen module, and built-in dewars from 210 to 2000 L for safe, efficient storage. Power requirements range from 4.2 to 55 kW, depending on capacity. Skid-mounted configurations (200–300 × 170–300 × 200–300 cm; 1,250–3,000 kg) feature an intuitive touchscreen interface, remote monitoring, automatic filling, and oxygen-depletion alarms for safety. With energy-saving economy mode, continuous operation capability, and optional chillers for temperature control, the CRYOGEN water-cooled systems ensure reliable, large-scale LN₂ production while reducing operational costs and eliminating reliance on external liquid nitrogen deliveries.

Request a Quote

F-DGSi Gas Generators

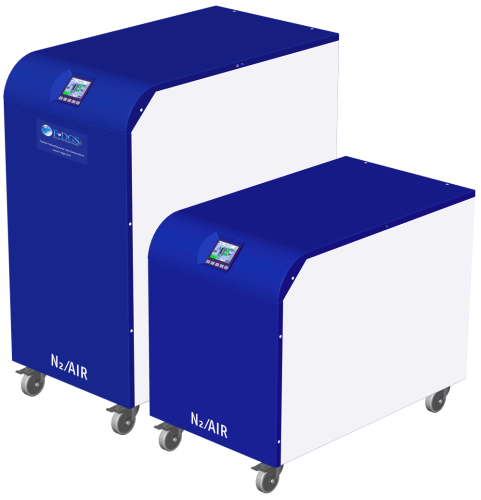

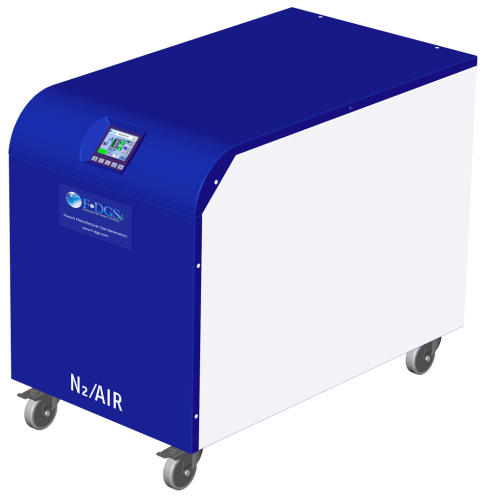

  • CALYPSO & STREAM Series | Nitrogen & Nitrogen/Air for LC-MS


    The F-DGSi CALYPSO and STREAM Series are designed for LC-MS and LC-MS/MS systems requiring consistent, high-purity nitrogen or combined nitrogen/air generation.

    Using either PSA (Pressure Swing Adsorption) or membrane technology, they produce gas on-demand at purities up to 99.999 % with flow rates from 15 to 260 L/min.

    CALYPSO models feature an intelligent touchscreen, Energy Saving Technology (EST), soundproofed compressors, and remote USB diagnostics for effortless control.

    STREAM units operate with an external compressor for continuous 24/7 supply and minimal maintenance.

    Together, they deliver reliable, low-cost, plug-and-play solutions that replace cylinder logistics and ensure optimal LC-MS performance.

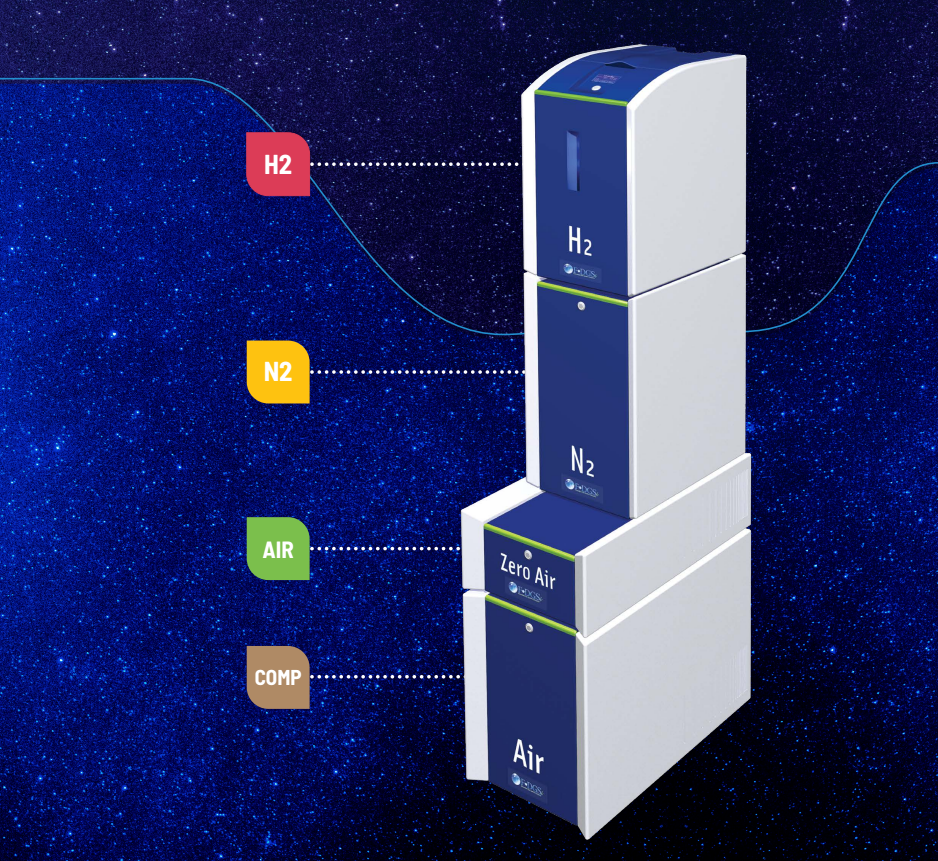

  • COSMOS Series | Modular Gas Generators for GC & GC-MS


    The COSMOS Series provides a modular, stackable platform that produces Hydrogen, Nitrogen, and Zero Air—plus an optional integrated oil-free air compressor—for single or multiple GC systems.

    Each module delivers constant purity (H₂ > 99.99999 %, N₂ > 99.9995 %, Zero Air HCs < 0.05 ppm) with auto-diagnostics, USB/RS232 remote access, and color-coded LED status indicators.

    Compact bench or floor configurations save valuable space while maintaining the highest safety through leak detection and automatic shutdown.

    The system’s GEN-Secure Technology ensures safe use of hydrogen as a carrier gas, and cascading options expand capacity as your lab grows.

    COSMOS offers a future-proof, fully customizable GC gas supply—safer, greener, and far more economical than high-pressure cylinders.

    COSMOS Series Catalogue

  • NESO, Z.NESO & DEIMOS Series | High-Purity Nitrogen & Air Generators


    For analytical instruments such as GC, TOC, FT-IR, ICP, and CAD/ELSD, the NESO and Z.NESO nitrogen generators deliver ultra-pure N₂ (99.9995 %), with optional hydrocarbon-free (< 0.05 ppm) output for critical applications.

    The DEIMOS Series produces Zero Air, Ultra Zero Air, and CO₂-Free Air at flow rates up to 50 L/min, ensuring clean, moisture-free gas streams for sensitive detectors.

    Each generator employs advanced PSA adsorption and catalytic oxidation to remove O₂, H₂O, HCs, CO, and CO₂, providing constant purity, low noise, and minimal maintenance.

    Optional integrated compressors make them completely self-contained.

    These systems guarantee stable baselines, enhanced sensitivity, and maximum uptime—delivering dependable, high-purity gas for every analytical workflow.

    Full Product Catalogue

Request a Quote
