Combustion Elemental Analysis

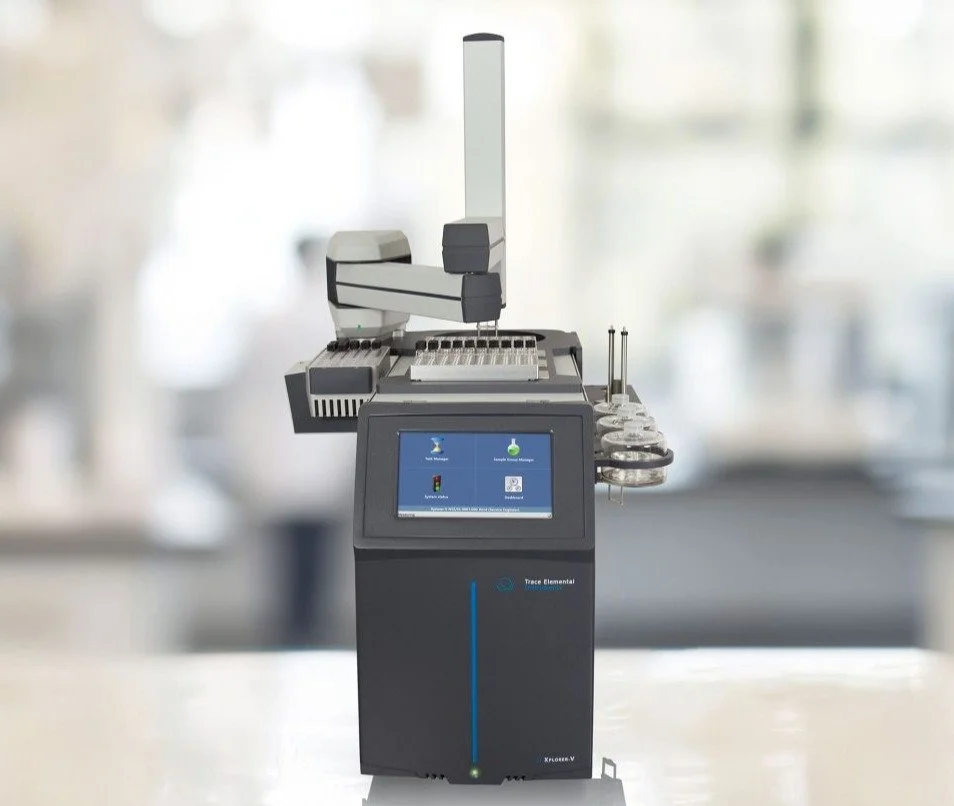

  • Xplorer-V N/S


    Analytes: Total Nitrogen & Sulfur (ppb-ppm) via Chemiluminescence & Pulsed UV-Fluorescence.

    Sample Scope: Solids, gases, and LPGs.

    ASTM Methods: D4629, D5176, D5453, D6667, D7183, D7184, D7551

    Key Benefits:

    Vertical furnace with self-cleaning Xpro-V™ tube (no catalysts).

    Compact footprint.

    Simultaneous analysis of nitrogen and sulfur.

    TEIS Software- Intuitive and feature-rich.

    Ultra-low detection limit, high stability, and reliability.

    Analysis time 2.5-5 min.

    Autosamplers:

    Vectra - auto syringe exchange, contditioned trays/syringes, up to 350 liquid positions.

    GLS - gas/LPG.

    GBS - low-pressure gas bags.

    Download Brochure

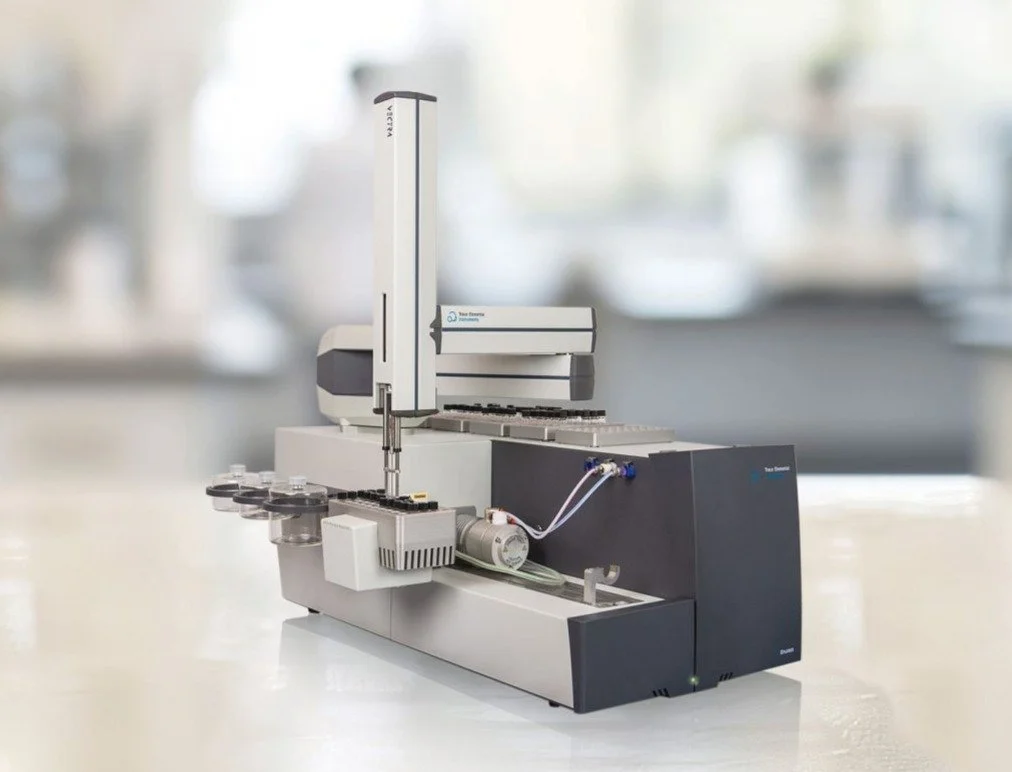

  • Xplorer TN/TS


    Analytes: Total Nitrogen & Sulfur (ppb-ppm) via Chemiluminescence & Pulsed UV-Fluorescence.

    Sample Scope: Solids, liquids, gases, and LPGs.

    ASTM Methods: D3120, D4629, D5762, D5453, D6069, D6667, D7183, D7184

    Key Benefits:

    Fast module change (<45s).

    Compact footprint, <15 min startup.

    Simultaneous analysis of nitrogen and sulfur.

    TEIS Software- Intuitive and feature-rich.

    Ultra-low detection limit, high stability, and reliability.

    Autosamplers:

    Vectra - auto syringe exchange, contditioned trays/syringes, up to 350 liquid positions.

    GLS - gas/LPG.

    GBS - low-pressure gas bags.

    Newton - for solids (ex. polymer pellets).

    Download Brochure

  • Xplorer TX/TS


    Analytes: Total Chloride & Total Sulfur (ppb-ppm) via Combustion Microcoulometry

    Sample Scope: Solids, gases, and LPGs.

    ASTM Methods: D4929, D5453

    Key Benefits:

    Compact design.

    Incredible precision.

    TEIS Software- Intuitive and feature-rich.

    Ultra-low detection limit, high stability, and reliability.

    Autosamplers:

    Vectra - auto syringe exchange, contditioned trays/syringes, up to 350 liquid positions.

    GLS - gas/LPG.

    GBS - low-pressure gas bags.

    Newton - for solids.

    Download Brochure
  • Tuscan

    XPrep C-IC


    Analytes: Automated Sample Preperaration Solution for the Analysis of Total Fluorine, Chlorine, Bromine, and Iodine by Combustion Chromatography Method

    Sample Scope: Petrochemicals, (bio)fuels, LPGs, gases, organic solvents & chemicals, polymers (raw and final products).

    ASTM Methods: D5987, D7359, D7994, D8150, D8247

    Key Benefits:

    Half the size of existing C-IC configurations.

    Integrated sampling system- fraction collector (up to 65 samples)

    TEIS Software- Intuitive and feature-rich.

    Larger Sample Volume (up to 100 µL).

    Automated sample introduction.

    Oxidative pyrohydrolytic combustion.

    Autosamplers:

    Vectra - auto syringe exchange, contditioned trays/syringes, up to 350 liquid positions.

    GLS - gas/LPG.

    GBS - low-pressure gas bags.

    Newton - for solids.

    Tuscan- for delivering AOX/AOF column content into the XPrep C-IC sample boat.

    Download Brochure
Request a Quote

Autosamplers

  • GLS

    Three Available Models
    Standard
    LPG - 353 psi
    Gas - 725 psi

    Extended Pressure
    LPG - 700 psi
    Gas - 725 psi

    High Pressure
    LPG - 1500 psi
    Gas - 725 psi

    Download Brochure

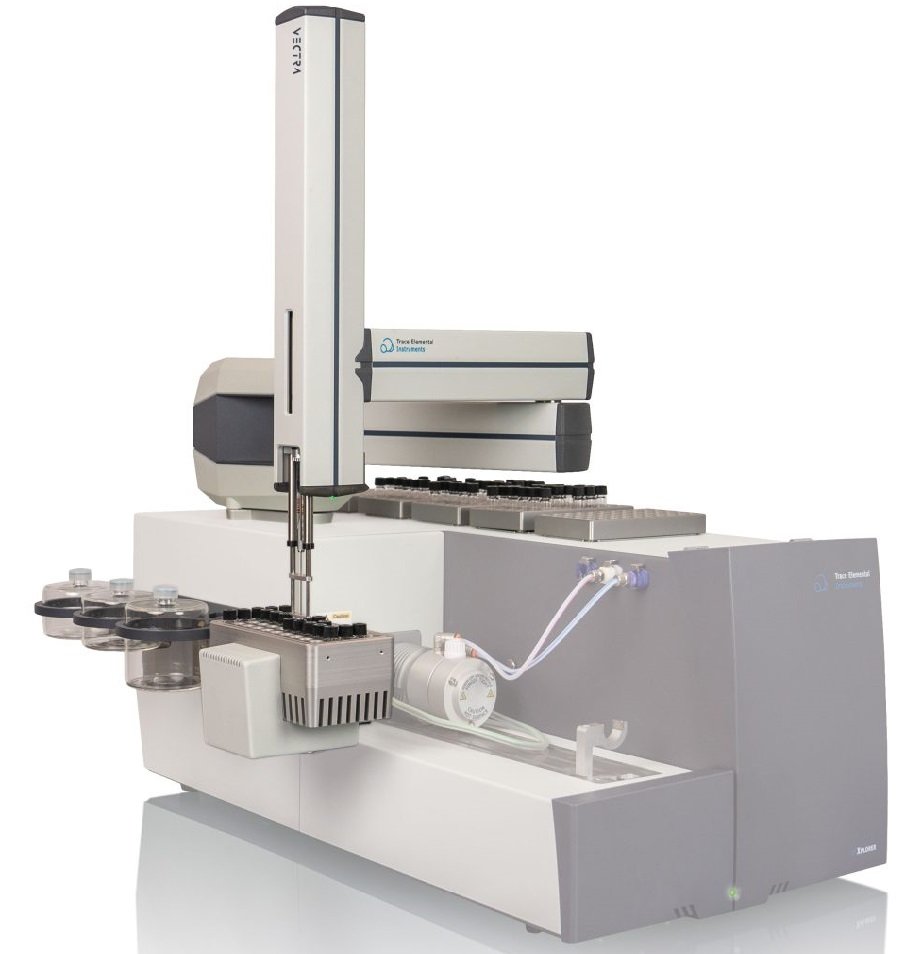

  • Vectra

    Liquids Autosampler

    Up to 350 samples.
    High-performance conditioned trays.
    High-performance conditioned syringes.
    Auto syringe exchange (3 parking positions).
    Position feedback and auto position recovery (no more bent needles).

    Download Brochure

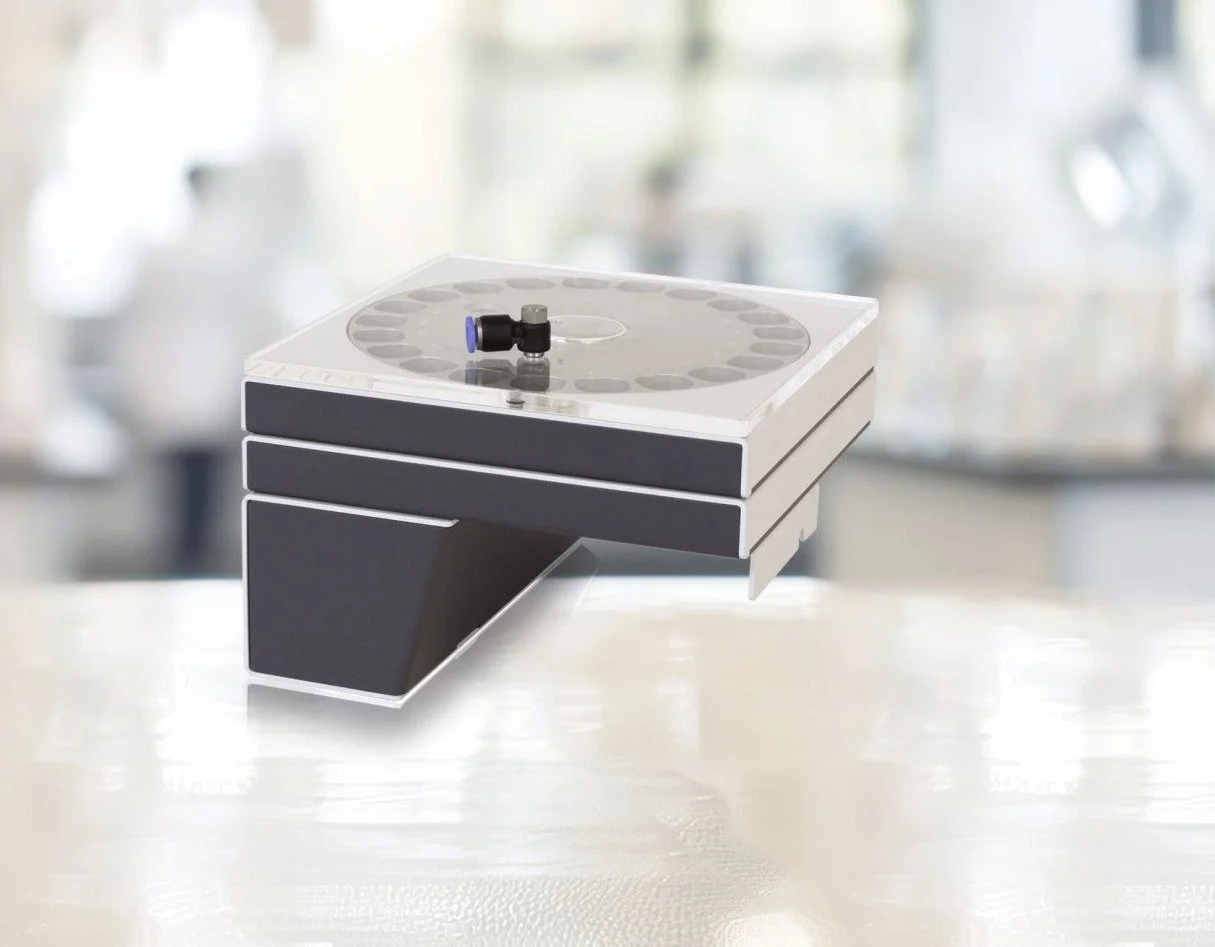

  • Newton

    Solids Autosampler

    Up to 60 positions.
    For solids (ex. polymer pellets.)
    Optimal preservation of samples using purge flow and protective lid.
    Default & customized methods.

    Download Brochure

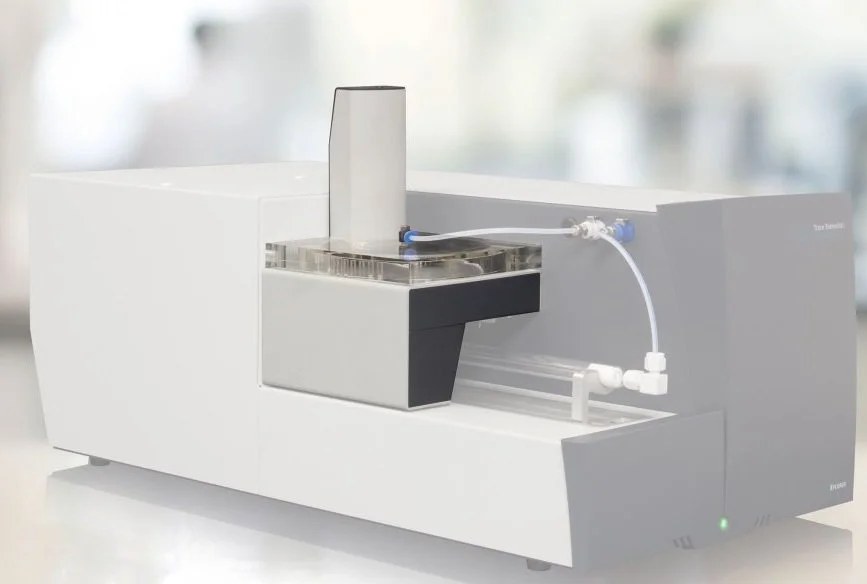

  • Tuscan

    Tuscan

    AOX Column Autosampler

    Easy and fast installation.
    Fully automated.
    Small footprint.
    42 Positions.
    Default & customized methods.
    Automatically deliver AOX/TOX column content into the Xplorer or XPrep C-IC sample boat.

    Download Brochure

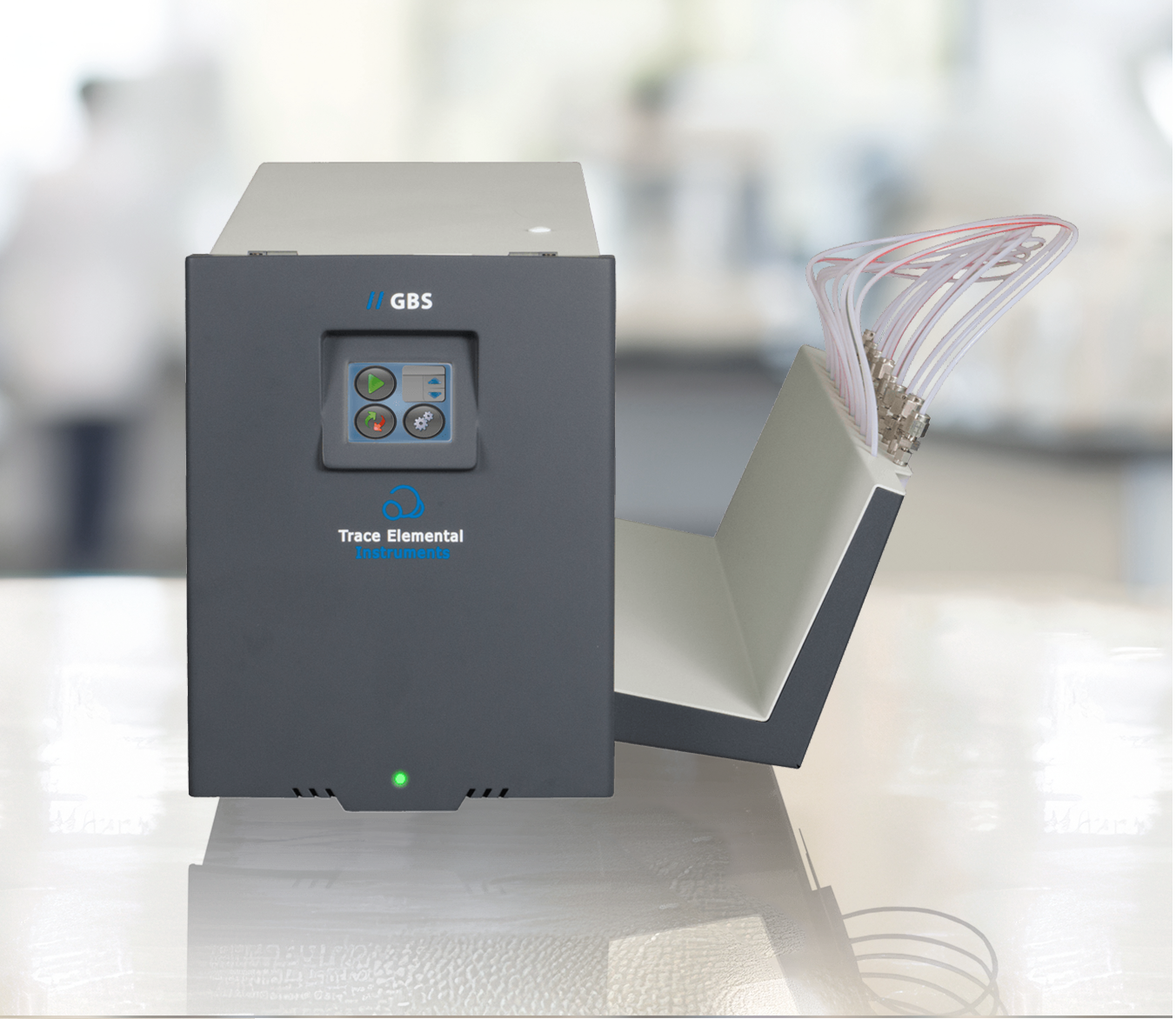

  • GBS

    Gas Bag Autosampler

    Up to 10 gas bags automatically.
    Calibration line from single CRM.
    No sample pressure required.
    Default & customized methods.

    Download Brochure
Request a Quote

Horiba Scientific - Multi-Element Analyzers

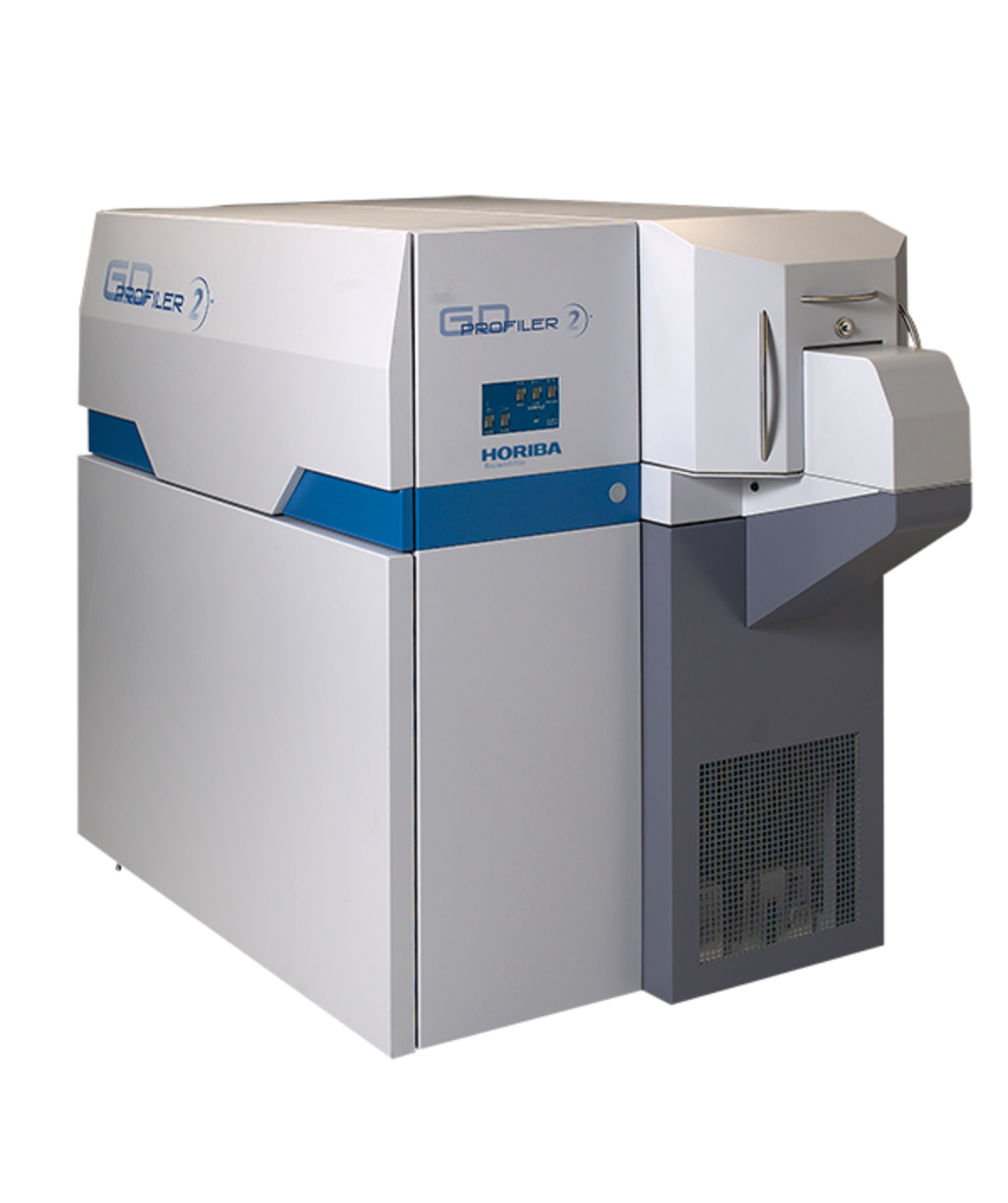

  • GD-OES Profiler 2

    Advanced glow discharge optical emission spectrometer for versatile elemental analysis of conductive and non-conductive solids, including bulk materials, thin films, and multi-layer structures.

    Performs both qualitative and quantitative analysis with high accuracy

    Depth profiling at nanometer-level resolution, reaching up to 150 µm into complex, multi-layer samples

    Enables verification of depth distribution repeatability for reliable results

    Download Brochure

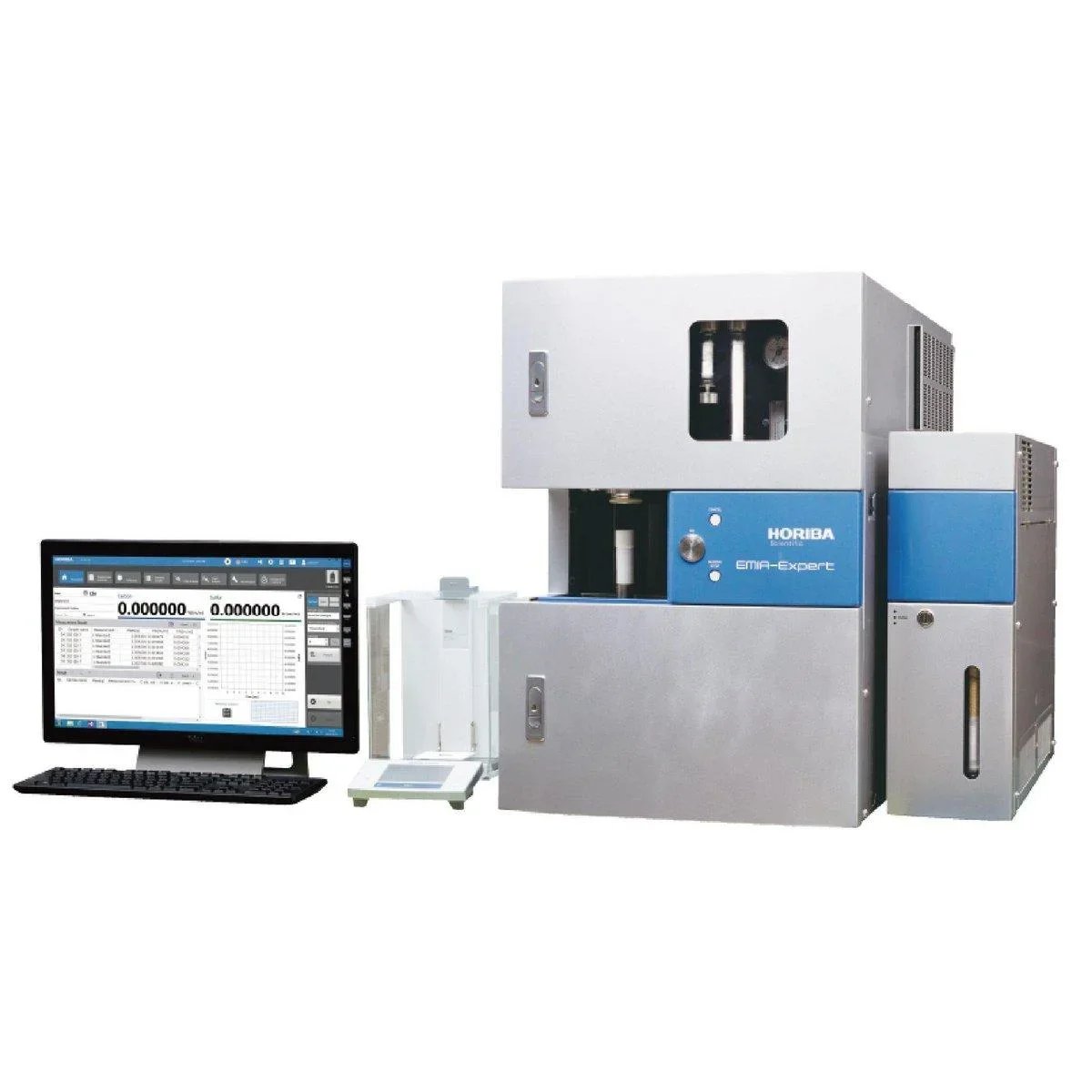

  • EMIA-Expert C/S Analyzer

    Non-Dispersive InfraRed

    Carbon

    Measurement Range
    0.6 ppm ~ 10.0%

    Accuracy (Repeatability)
    σn-1 ≦ 0.3 ppm or RSD ≦ 0.5%

    Sulfur

    Measurement Range
    0.6 ppm ~ 1.0%

    Accuracy (Repeatability)
    σn-1 ≦ 0.3 ppm or RSD ≦ 0.75%

    Download Brochure

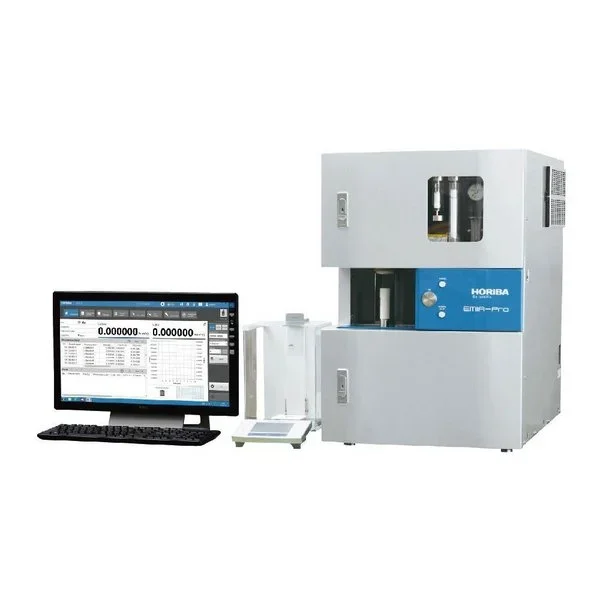

  • EMIA-Pro C/S Analyzer

    Non-Dispersive InfraRed

    Carbon

    Measurement Range
    1.6 ppm ~ 6.0%

    Accuracy (Repeatability)
    σn-1 ≦ 2.0 ppm or RSD ≦ 1.0%

    Sulfur

    Measurement Range
    2.0 ppm ~ 1.0%

    Accuracy (Repeatability)
    σn-1 ≦ 2.0 ppm or RSD ≦ 1.5%

    Download Brochure

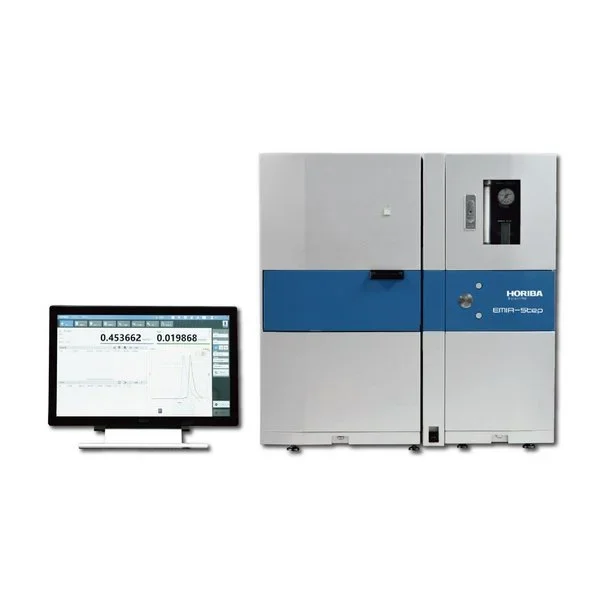

  • EMIA-Step C/S Analyzer

    Non-Dispersive InfraRed

    Carbon

    Measurement Range
    0.0003 〜 6.0% (m/m)

    Accuracy (Repeatability)
    σn-1 ≦ 0.00015% (m/m) or RSD ≦ 0.75%

    Sulfur

    Measurement range
    0.0004 〜 1.0%（m/m）

    Accuracy (Repeatability)
    σn-1 ≦ 0.00020% (m/m） or RSD ≦ 2.00%

    Download Brochure

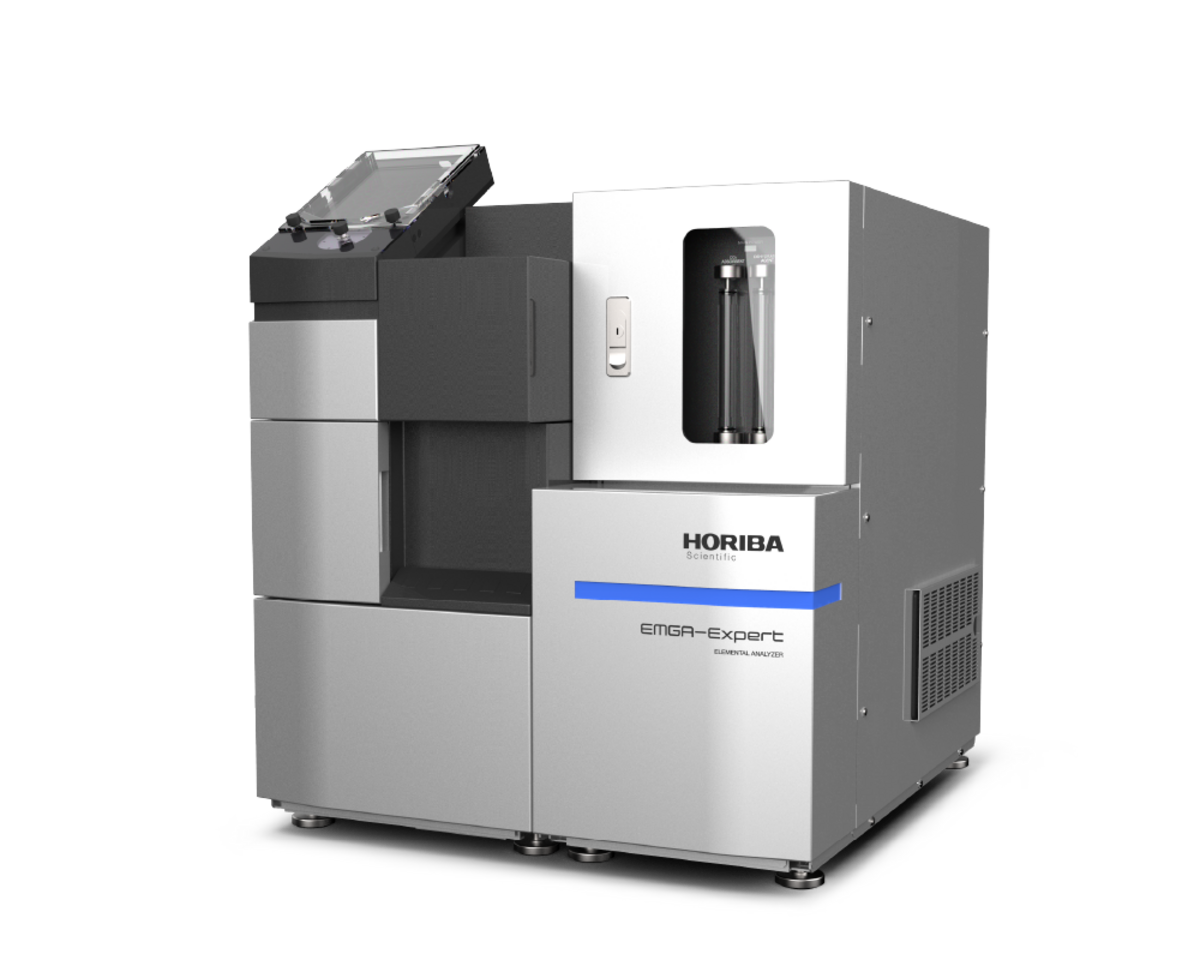

  • EMGA-Expert O/N/H Analyzer

    Non-Dispersve InfraRed

    Oxygen

    Measurement Range
    0.04ppm - 5%

    Precision Repeatability
    σn-1≦0.02ppm or RSD≦0.5% (GAS）

    Nitrogen

    Measurement Range
    0.04 ppm - 3%

    Precision Repeatability
    σn-1≦0.02ppm or RSD≦0.5% (GAS）

    Hydrogen

    Measurement Range
    0.08ppm - 2500ppm

    Precision Repeatability
    σn-1≦0.04ppm or RSD≦2.0% (GAS）

    Download Brochure

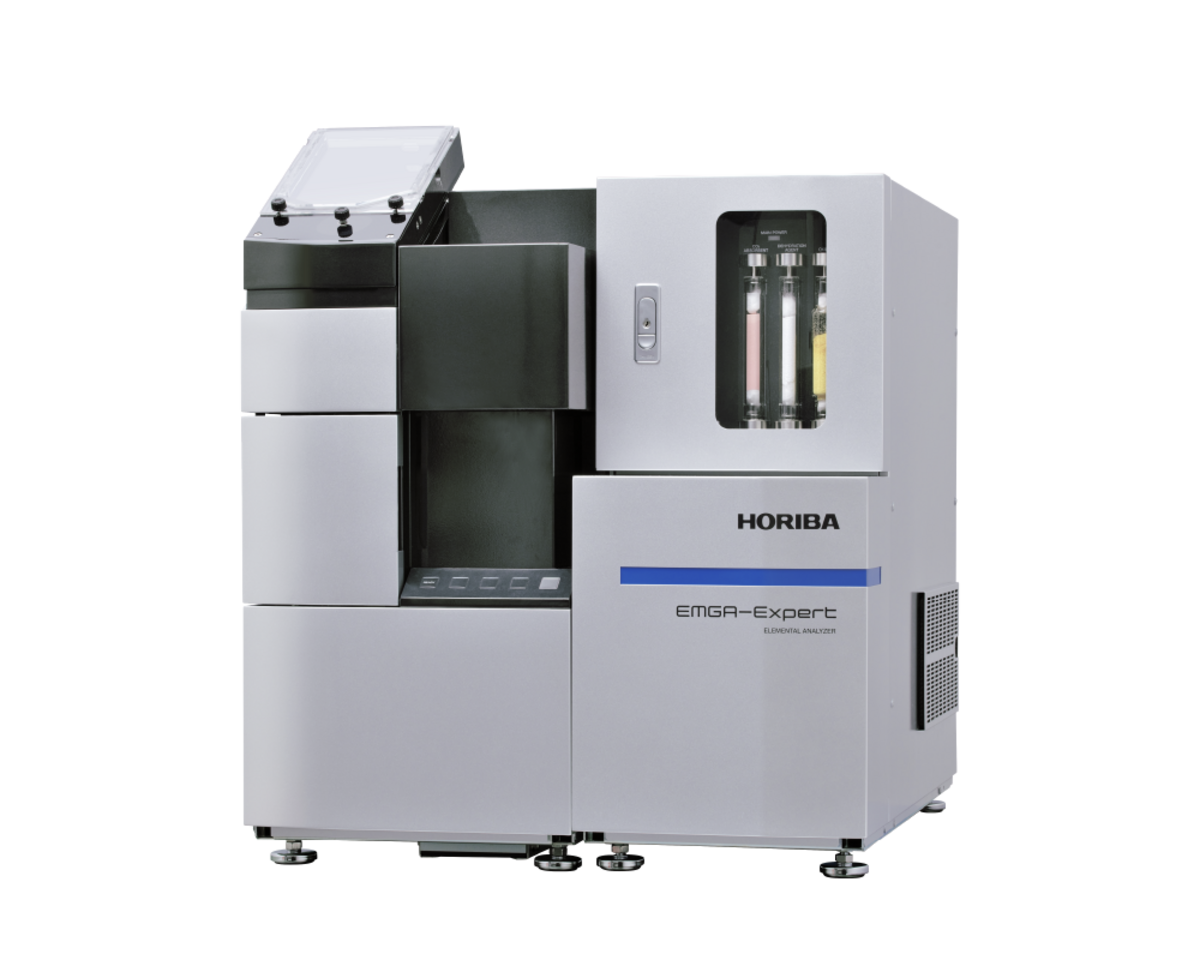

  • EMGA-Expert 21E Hydrogen Analyzer

    Thermal Conductivity Detector

    Hydrogen

    Measurement Range
    0.04 ppm - 0.02%

    Precision Repeatability
    σn-1-≤0.04 ppm or CV≤0.5% (GAS)

    Download Brochure

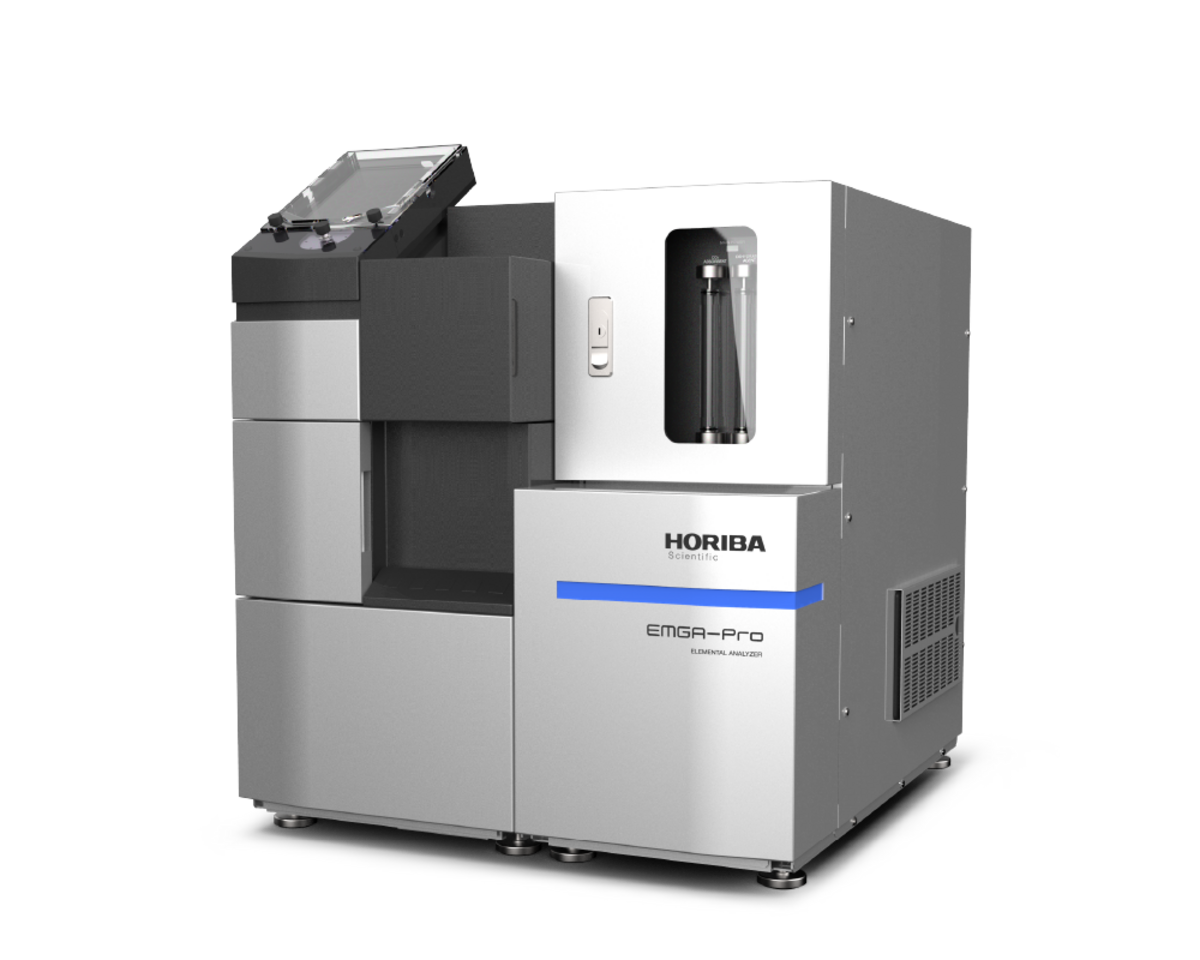

  • EMGA-Pro O/N Analyzer (O/H/N Option Available)

    Oxygen

    Measurement Range
    0.1ppm - 0.3% （Low-concentration specification）
    0.1% - 5% （High-concentration specification）

    Precision Repeatability
    σn-1≦0.05ppm or RSD≦0.5% (GAS） （Low-concentration specification） RSD≦0.5% (GAS） （High-concentration specification）

    Nitrogen

    Measurement Range
    0.1 ppm - 0.3% （Low-concentration specification） 0.1% - 3% （High-concentration specification）

    Precision Repeatability
    σn-1≦0.05ppm or RSD≦0.5% (GAS） （Low-concentration specification） RSD≦0.5% (GAS） （High-concentration specification）

    Downlaod Brochure
Request a Quote

Horiba Scientific - X-Ray Analyzers

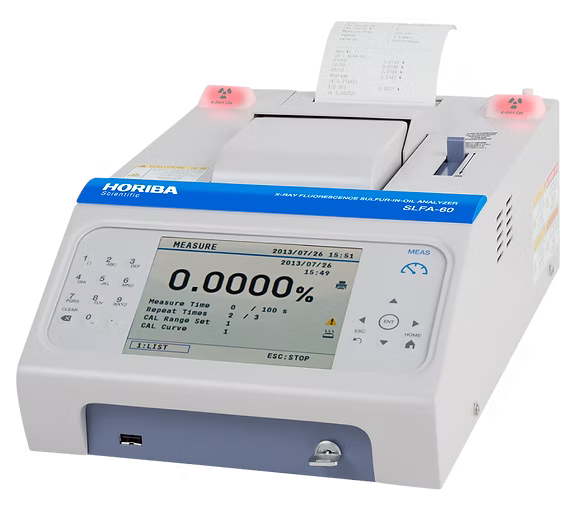

  • SLFA 60

    Ultra-low detection limits: Detects sulfur at levels as low as 20 ppm, and measures much higher concentrations—up to 9.9999 wt%—for crude and shale oil samples.

    Truly portable: Compact footprint and a lightweight design — only 9 kg — so it’s easy to move between labs or field sites.

    Built-in safety features: Each unit undergoes a factory X-ray leakage test, and operator protection is reinforced with a key switch and shield shutter.

    Straightforward operation: Choose a calibration curve (or let the instrument auto-select via “A” mode), then press MEAS to start the measurement.

    Download Brochure

  • SLFA-6800

    Modern, user-friendly interface: The SLFA-6100/6800 features an optimized UI with a full-color display, USB output, optional data printout mode, and a compact, refined footprint. A protective shutter shield and a new key-switch function enhance X-ray safety, while a redesigned turntable improves sample handling.

    Speed: Measurement times are configurable between 10 and 600 seconds.

    Automation: The SLFA-6800 supports automated analysis of up to 8 samples on its turntable using pre-set conditions.

    Simple operation: Select a calibration curve (or let the instrument auto-select using “A” mode) and press MEAS to begin.

    Improved accuracy: Software supports up to five sets of three calibration curves, increasing accuracy and flexibility for different sample types.

    Download Brochure

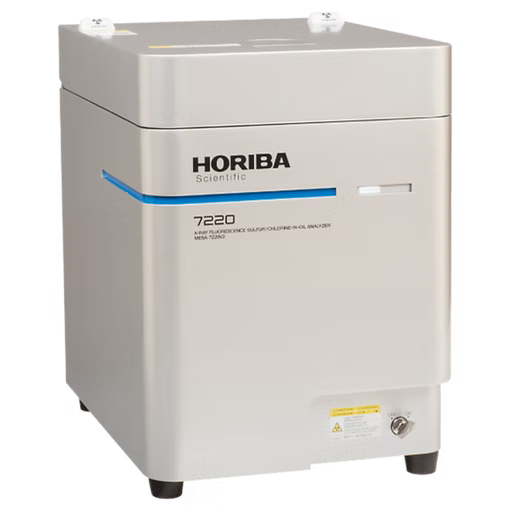

  • Mesa 7220v2

    Dynamic Analysis Range

    Sulfur: 0.7 ppm – 10.0 wt% • Chlorine: 0.6 ppm – 10.0 wt%

    Auto-ranging extends measurement capability across calibration curves.

    No purge gases required — simpler setup and lower operating cost.

    Calibration capacity: up to 60 curves with extensive data-point support.

    Flexible timing: measurement times from 30–999 seconds for sensitivity control.

    Oxygen correction minimizes interference on sulfur readings.

    Compatible sample types: solids, liquids, powders, pastes, pellets, and films.

    Built-in interlocks for user safety against X-ray exposure.

    High-performance detector: Silicon Drift Detector with X-ray Beryllium window.

    Download Brochure
